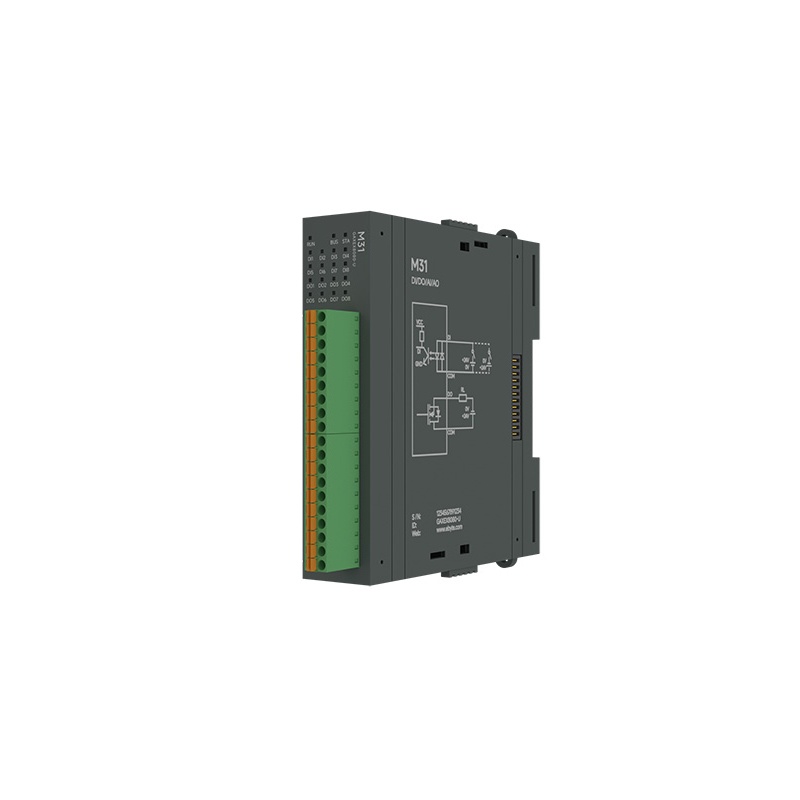

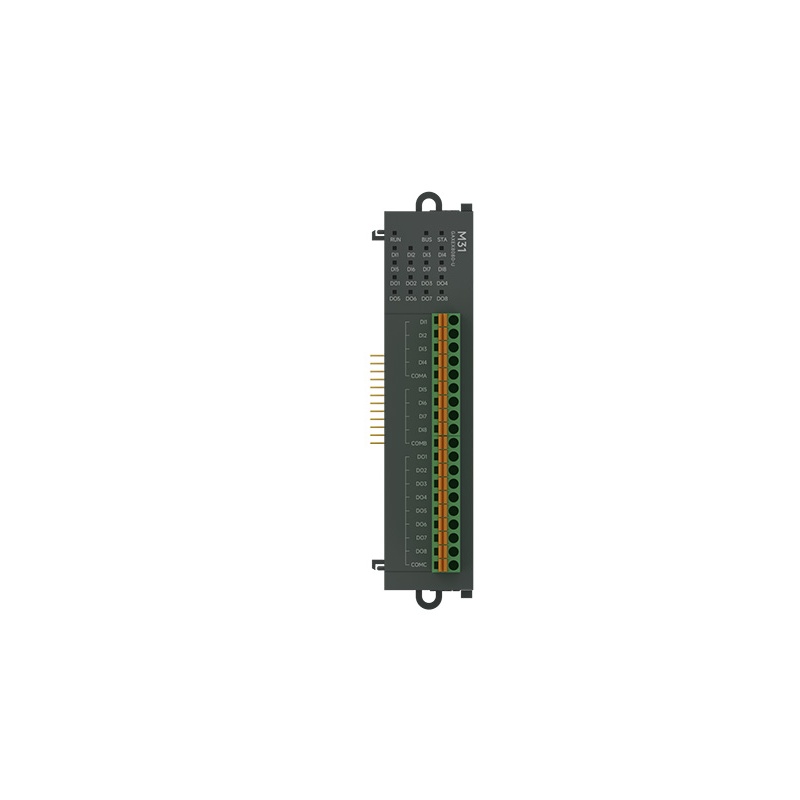

I/O laiendusmoodul
Kaubamärk:
Hind:
96,00 €
[Specifications]：8DI+8DO
[Communication Interfaces]：RJ45, RS485
[Operating Voltage]：DC: 9~36V
[Installation Method]：Positioning hole, DIN rail mounting

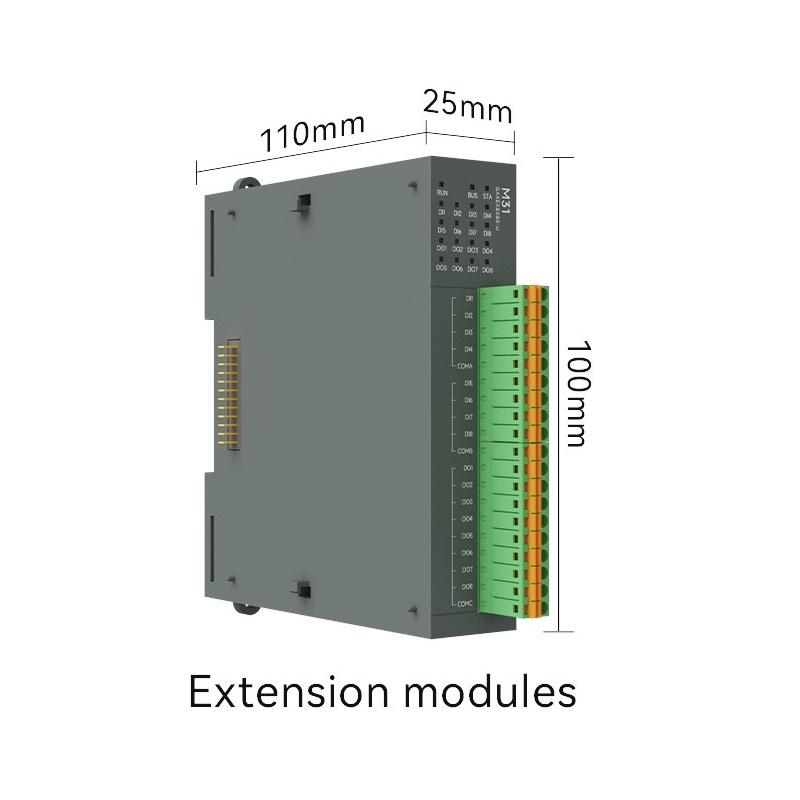

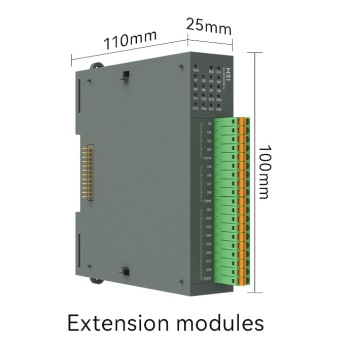

[Dimensions]：110*25*100mm
[Product Weight]：135±5g
[Introduction]：This high-performance distributed I/O expansion module needs to be used in conjunction with our high-performance distributed remote I/O module. The product casing is coated with conformal paint, providing functions such as "anti-mildew", "anti-moisture", and "anti-salt spray".
Parameetrid
| category | name | parameter |
| DI Input | Input type | NPN、PNP |
| Input range | DC 10～28V | |
| Isolation methods | Each channel is individually opto-isolated. | |
| Input impedance | 7.2kΩ | |
| sampling frequency | 1000 Hz | |
| Counting frequency | ＜500Hz | |
| Filtering time | Default time 6ms | |
| Input Instructions | DI green LED indicator | |
| AI input | Acquisition characteristics | Differential input |
| Input type | Differential current: 0-20mA, 4-20mA, ±20mA | |
| AI resolution | 16-bit (differential) | |
| AI accuracy | 1‰ (difference) | |
| refresh rate | Differential maximum 70Hz | |
| Input Instructions | AI Green LED Indicator | |
| Relay-type DO output | DO output type | Type A relay (normally open) |
| DO output mode | Level output, pulse output | |
| Relay contact capacity | 5A 30VDC, 5A 250VAC (maximum total current supported at the same COM common terminal is 8A) | |
| Output Indicator | DO green LED indicator | |
| Transistor-type DO output | DO output type | PNP type |
| DO output mode | Level output, pulse output | |
| Output capability | Supports output up to 0.5A per channel and 4A per COM port at voltages between 10 and 30V. | |
| Output Indicator | DO green LED indicator | |
| other | Product Dimensions | 110mm * 25mm * 100mm (Length * Width * Height) |
| Operating temperature and humidity | -40 to +85℃, 5% to 95%RH (non-condensing) | |
| Storage temperature and humidity | -40 to +105℃, 5% to 95%RH (non-condensing) | |
| Installation method | Positioning holes and guide rail installation |
